Description

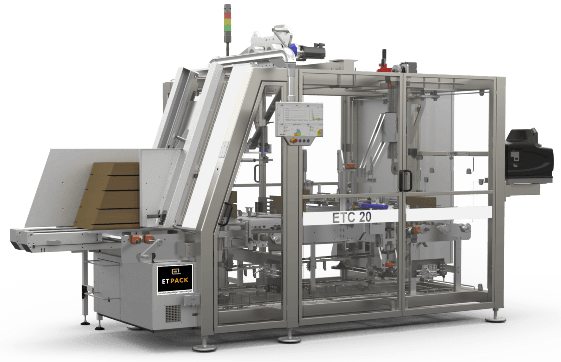

• Wraparound case packer • Closing by hot melt gluing • Dealing with flat blanks – Microfluted or corrugated board • Possibility of forming trays, economy flap cases, shelf-ready cases etc… • Intermittent motion • Compact and ergonomic machine with different layout configurations • For packing a wide variety of products including bags, boxes, cups, flow-wraps and rigid containers. By using suitable infeed systems, products can be positioned into the case flat, on edge or standing up on one or multiple layers picto-caractéristique MAIN FEATURES • Positive telescopic feeder • Easy-loading magazine • Pick & place loading • Cycle stops terminating cases gluing • Interchangeable toolsets • HMI up to 15,6” • Axis controller and servodriven motors • Multibrand Ethercat communication • Stainless steel frame • Dimensions machine : 4600 x 2400 x 2470 mm 181,10” x 94,49” x 97,24” • Mini/maxi cases dimensions: • Longueur : 150 – 400 mm / 5,91” – 15,75” • Largeur : 150 – 400 mm / 5,91” – 15,75” • Hauteur : 100 – 250 mm / 3,94” – 9,84 CADENCE MACHINE 16 caisses/min
