Description

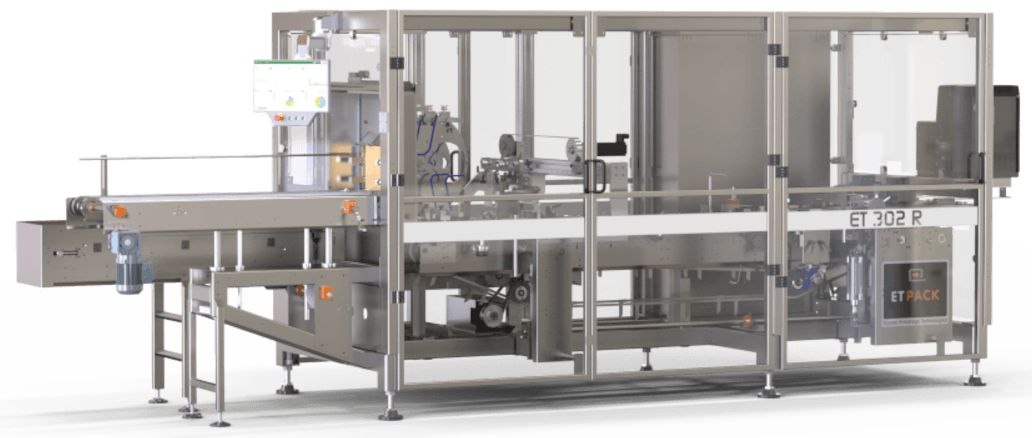

• Multiformat intermittent motion endload cartoner for boxes forming, loading and closing • Applications: boxes with or without window • Hot-melt gluing or tuck-in • Simple or double push • Cardboard as well as microfluted • A wide range of automatic infeeds: Unitary products, batching, stacking … • Une large gamme d’alimentations automatiques : gestion de produits unitaires, mise en lot et regroupement, empilage… • Options: inkjet marker integration, label application, barcode control, control and rejection of not glued boxes … MAIN FEATURES • High capacity easy loading magazine • Rotary feeder • Boxes pre-opening vacuum cups • Top control • HMI up to 15,6” • Axis controller and servodriven motors • Multi-brand Ethercat communication • Stainless steel frame • Dimensions : 5050 x 1520 x 2050 mm 198,82” x 59,84” x 80,71” • Classification: IP54 • Power supply: 10kW • Air supply: 6 bars • Mini/maxi formats: Lenght : 120 – 360 mm / 4,72” – 14,17” Width : 40 – 320 mm / 1,57” – 12,6” Height : 25 – 105 mm / 0,98” – 4,33” MACHINE RATE Up to 60 ppm FINAL PACKAGING Boxes YOUR PRODUCT Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Sea products
