Description

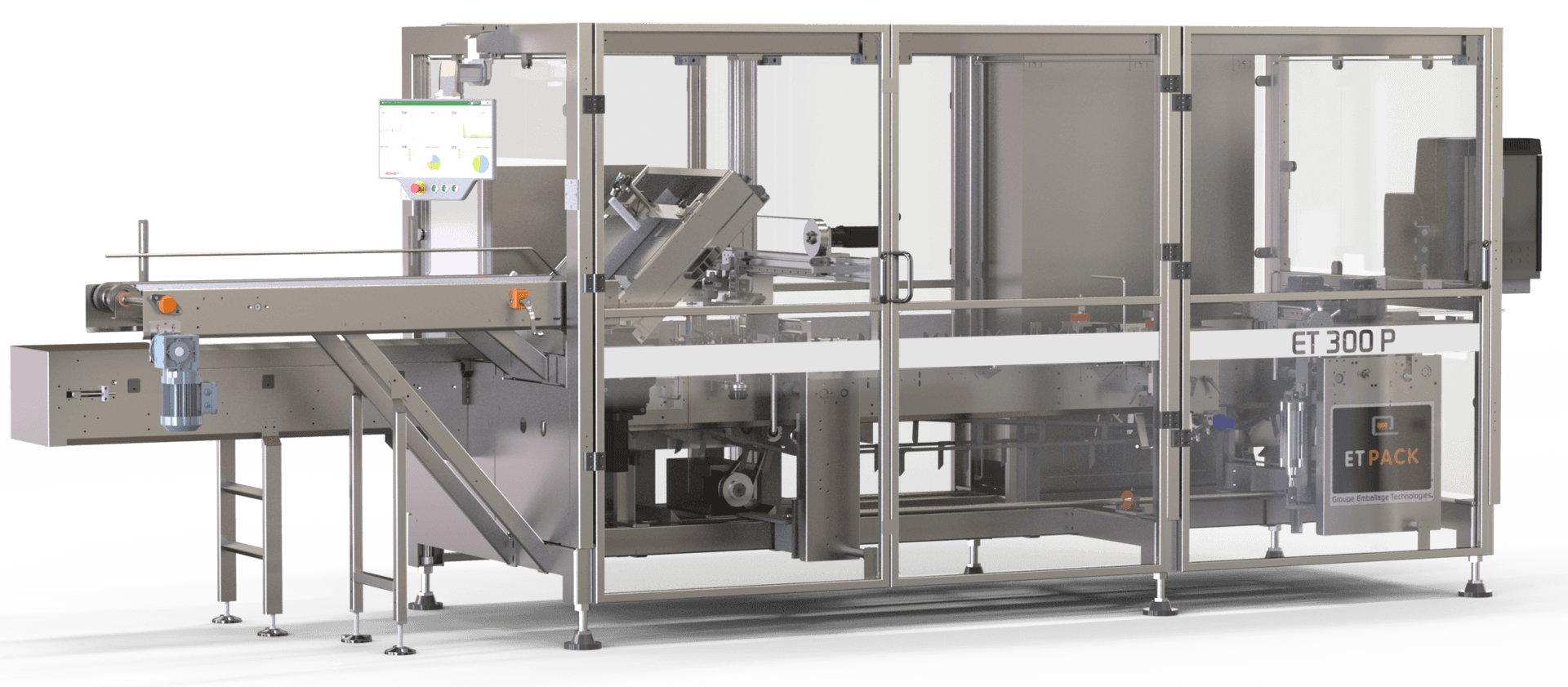

• Horizontal intermittent cartoner allowing volume setting, filling and closing of cartons • Applications: cases with or without window • Compact and micro-corrugated cardboard • Hot-melt bonding version or retractable legs • Manual loading • A wide range of supplies : management of unitary products, batching and grouping, stacking, etc. • Option : inkjet marker integration, label application, barcode control, control and ejection of empty or unglued cases, etc. TECHNICAL FEATURES • Large capacity motorized horizontal magazine • Pendulum unstacker • Accompanying upper sky • HMI up to 15.6′ • Brushless axis and motor controller • Multi-brand Ethercat communication • Stainless chassis • Dimensions 5050 x 1520 x 2050 mm • Classification: IP54 • Power supply: 10 kW • Pneumatic supply: 6 bars • Standard mini/maxi formats: Length: 120 – 360 mm Width: 40 – 320 mm Height: 25 – 110 mm MACHINE CADENCE 10 to 40 cps/min FINAL PACKAGING Cases YOUR PRODUCT Biscuits , Chocolate , Confectionery , Cosmetics and pharmaceuticals , Seafood , Frozen products , Catering products , Meat and poultry
