Description

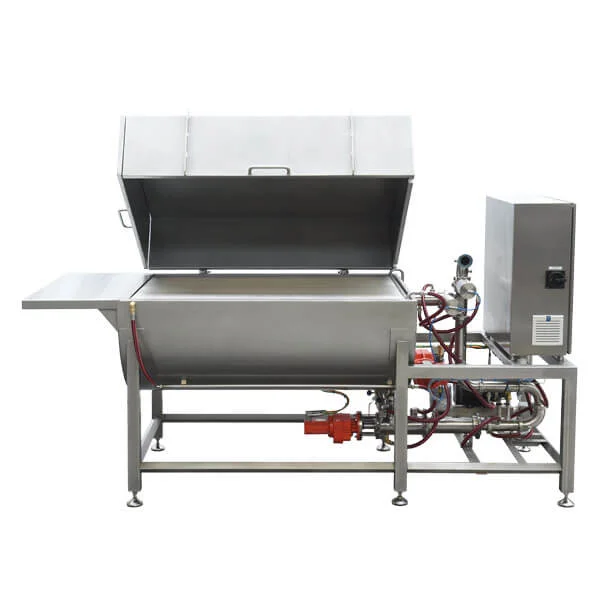

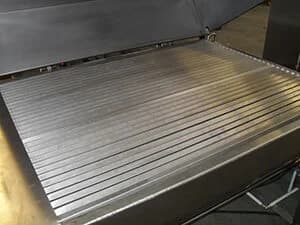

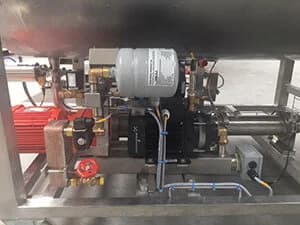

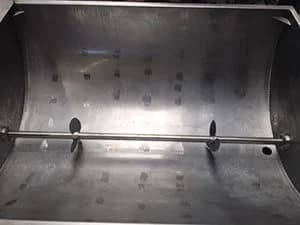

The fatmelter is used to melt blocks of fat, shortening, chocolate blocks and chocolate chips or other similar products that require temperature-controlled heating to convert them from a solid, or semi solid state to liquid for processing. It turns them into a liquid state via an adjustable temperature heated grid. A variable speed agitator holds the melted product in suspension, and at a controlled and even temperature. The blocks are loaded manually and unpacked on an incorporated loading table, before being slid onto the heating grid. Beneath the fat melter there is a pump to transfer the liquified product into the main system. The temperature of the fatmelter’s: grid, jacketed tank and pipework is controlled via a water tempering unit providing a constant set temperature to all three components. Systems parts • Tank in jacketed execution • Loading table • Melting grid, mounted on top, jacketed holding tank for the liquified product. Heated by temperature-controlled circulating hot water. • Grid cover fitted with gas actuators for easy opening. • Product transfer pump • Water tempering unit
